Filling Machine Match Equipment Chemical Liquid Cosmetic Lotion Paste Transfer Pump Air Operated Pneumatic Diaphragm Pum

Ask Lasest Price
Brand Name :	AILUSI
Certification :	CE,ISO
Price :	800-1000USD
Payment Terms :	D/A, L/C, T/T
Supply Ability :	10
Delivery Time :	35

Add to Cart

Product Details
Company Profile

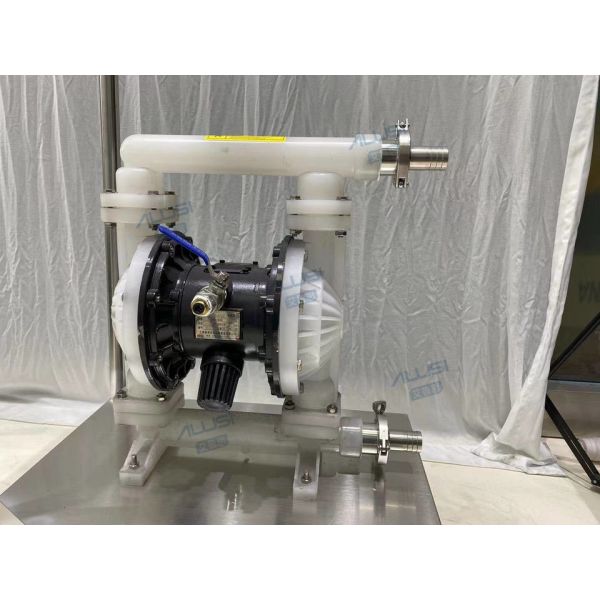

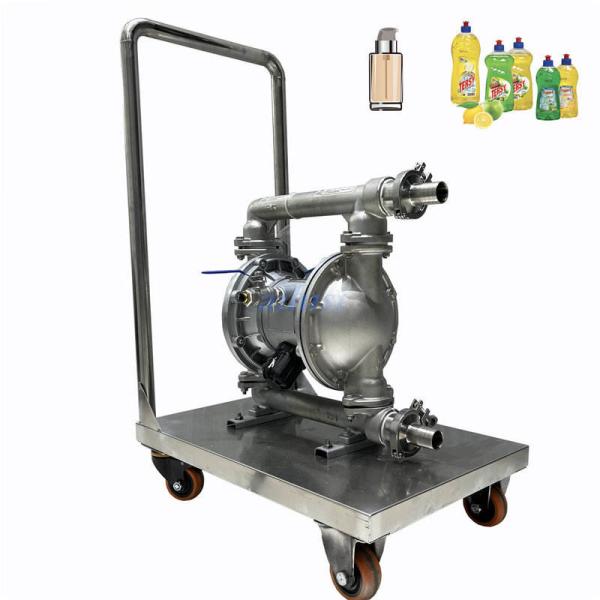

Filling Machine Match Equipment Chemical Liquid Cosmetic Lotion Paste Transfer Pump Air Operated Pneumatic Diaphragm Pum

Overview:
Pneumatic diaphragm pump is a new type of conveyor machinery, adopts compressed air as power source, suitable for various corrosive liquid, with particles liquid, high viscosity and volatile, inflammable, poisonous liquid. The main characteristic of this pump is no priming water needed, can pumping the medium that easy to transport. High suction head, adjustable delivery head, fire and explosion proof.

Working Principle:
In the two symmetrical pump chamber equipped with a diaphragm, which is connected by a center couplet stem. Compressed air comes in from pump inlet valve, and enter into one cavity, push the diaphragm movement, and gases emitted from another cavity. Once to the destination, gas distribution components will automatically compressed air into another chamber, push the diaphragm to the opposite direction, thus make two diaphragm continuous synchronization to reciprocating movement.

Compressed air goes into the valve, make the diaphragm to the right movement, and chamber suction make medium enter into, push the ball into the room, ball valve shuts down due to inhalation, Mediums discharged by extrusion, and opened the ball valve and at the same time close the ball valve, prevent back flow, thus to make medium ceaseless from the entrance inhaled, exit eduction.

Filling Machine Match Equipment Chemical Liquid Cosmetic Lotion Paste Transfer Pump Air Operated Pneumatic Diaphragm Pum

Item NO.:AVE
Lead Time:35 days
Product Orgin:China
Shipping Port:Yangzhou/Guangzhou
Payment:EXW, FOB, CIF etc

Product Detail

Filling Machine Match Equipment Chemical Liquid Cosmetic Lotion Paste Transfer Pump Air Operated Pneumatic Diaphragm Pum

Size Information

No	Item	Description
1	Material	Polypropylene, aluminum
2	Outlet Diameter	DN32, DN40, DN51, DN63...(Match with the Equipment)
3	Power	- * Connect to Air Compressor
5	Type of connection	Quick couple, Thread, Flange

Main Advantages:
* Due to the use of air power, the flow automatically changed according to export resistance. Which is suitable for high
viscosity fluid.
* In inflammable and explosive environment, the pump is reliable and low cost, won't produce spark and not overheat,
* The pump volume is small, easy to move, no foundation needed, convenient installation and economy. Can be used as mobile conveying pump.
* Where there are dangers, corrosive materials processing, diaphragm pump can be separated completely with outside.
* The pump shearing force is low, physical effect to medium is small, can be used for conveying unstable chemistry fluid.

Factory:

Our Service

After-sales Service: Online support,Video technical support,Free spare parts

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory specialized in Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetic, pharmaceutical, chemical equipment over 20 years.

Q2: How does your factory do regarding quality control?

A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q3: What’s the guarantee and the after service if we purchase from you?

A3: All the equipment ordered from us will provide one year guarantee from the delivery date.we could send our engineer to install or fix the machine locally.

Q4: Are your machines difficult to operate? How do you teach us to use the machine?

A4: Our machines are easy to operate, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them.

Q5: Can you make the machine according to customers' request?

A5: Yes of course, OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation.
