| | 4-20 filling nozzles ( anti-drop and servo motor control) |
| | 10-120ml; 50-500ml; 100-1000ml; 250-2500ml; 500-5000ml |
| | 24-42BPM (6 nozzles, 100-1000ml) |
| | AC380V / 50Hz(design as your requirements) |
| | 3-10KW |
| | <±1% |
| | 0.4-0.8Mpa |
| | Servo motor drive, silicone tubes |
| | Automatic |
| | Machine Material: SUS304, Contact Material: SUS316 |
| | WEINVIEW |
| | Mitsubishi |
| | TECO |
| | SCHNEIDER |
| | OMRON |
Application:
Apply to all kinds of cosmetic, medicine, veterinary medicine,
pesticide, lubricating oil industry capping machine equipment.
Main Features:

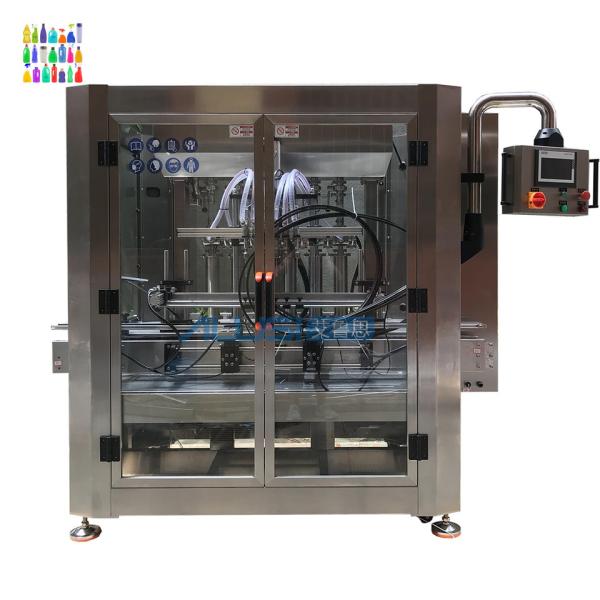

1. PLC combined with touch screen control system with Liquid
Filling Machine. Intelligent controlling system reduces operation
errors. No filling when there are no bottles. High filling accuracy
& No overflow. High filling speed and stable transmission. With
strong counting function.

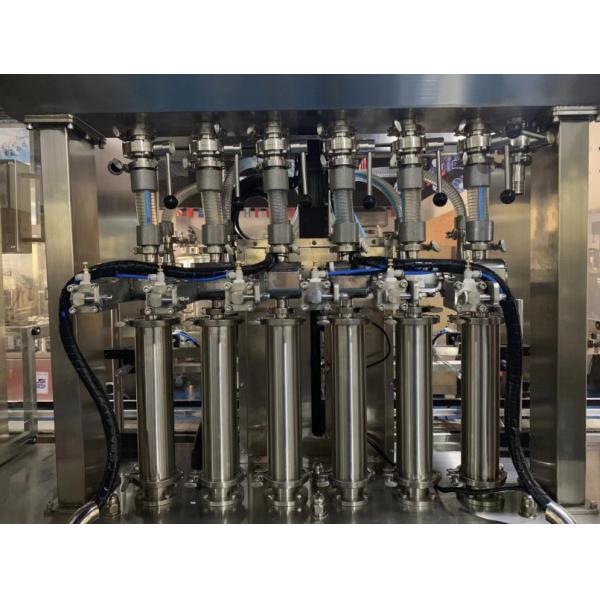

2. Servo Motor driven piston pump filling, Servo Motor driven piston and main cylinder for filling nozzle up
and down.Multi-range filling (optional lifting filling structure is
also optional). pneumatic induction positioning filling, can be
equipped with pneumatic pump for automatic liquid delivery.
3. With regular filling, no bottle no filling, filling quantity/production counting function etc features.
4. No need to change parts are required for different bottle
sizes.(Within the parameters)
5. The whole Liquid Filling Machine is made of food grade 304 &
316L stainless steel which provides a clean and hygienic
environment.
6. The filling part is easy to disassemble and transfer. It usually
only takes 20 minutes to replace parts.
7. Simple Operation. Anyone can operate proficiently in a short
time. Easy to Clean.
8. It can be easily moved with installation of casters.
9. Option: Anti-corrosive filling machine,Automatic Capping Machine, Automatic
Double-Side Bottle Labeling Machine, etc.
Factory:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Mainte
