380V/50Hz SS Vertical Blender Homogenizer Vacuum Emulsifier Mixing
Machine
Vertical Blender Homogenizer Vacuum Emulsifier Mixing Machine for
the manufacturing of viscous emulsion, dispersion and suspension in
the cosmetic, pharmaceutical, food and chemical industries. It's
the most advanced homogenizing equipment design from Europe and is
especially suitable for making big batches of cream and emulsions
with large quantity of powders.
Performance & feature of body cream lotion machine :
Variable speed.
- Adopting imported frequency converter for speed adjustment.
High speed shearing homogeneous.
- The maximum emulsifying rotation speed: 4,200 rmp; highest shearing
fineness: 0.2-5 μ m
Being aseptic.
- Adopting vacuum defoaming, avoid dust.
Stable control.
- Adopting imported control: German Siemens PLC brand
Convenient for cleaning and discharge.
- Adopting lifting system, easy to clean and the cleaning effect is
more obvious, the emulsifying pot can adopt tilt discharge.
Imported materials.
- Adopting imported 316L stainless steel materials, inside and
outside polishing, conforming to GMP standards.
Item NO.:AVE
Lead Time:35 days
Product Orgin:China
Shipping Port:Yangzhou/Guangzhou
Payment:EXW, FOB, CIF etc
MOQ:1
goods stock:500
Product Detail
Working PrincipleThe materials in the water-phase tank and oil-phase tank are heated
up and stirred. After they are thoroughly mixed, they will be
transferred to the emulsifying tank by vacuum pump. The material

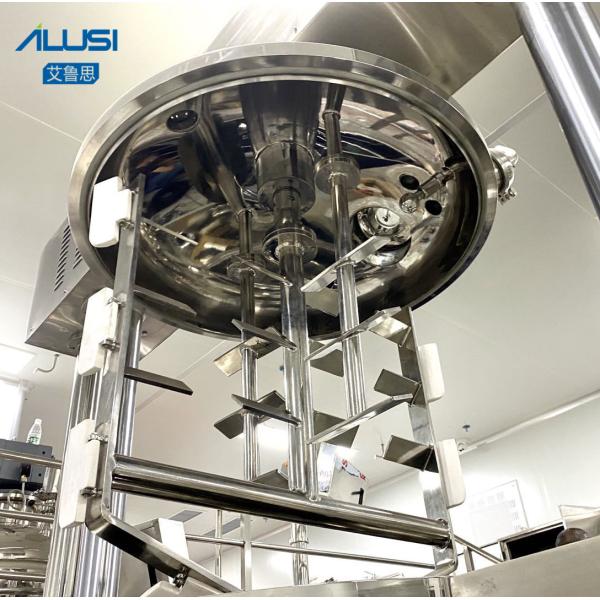

will be stirred by the upper part of the central paddle, combined
with the PTFE scraper sweeping the wall, the material will be
stirred thoroughly and meanwhile be pushed down to the emulsifier
at the low part of the central axle. With very high speed
emulsifying effect, the material will be seriously cut, sheared,
and cracked into 200nm - 2um particles. The bubbles appear during
the process will be sucked out promptly in the vacuum status in the
tank.
Technical parameters of China maker body cream lotion machine :
Item: China maker body cream lotion machine | Application: | Liquid with Suspended Solids, liquid wash, cosmetic beauty cream,
shampoo, detergent etc |
| Function: | Mixing and homogenizing |
| Additional Capabilities: | Milling |
| Mixer Type: | Homogenizer |
| Homogenizer: | Bottom homogenizer with frequency inverter |
| Mixing: | Upper frame oar scrape mixer |
| Max. Loading Capacity: | 50-5000L |
| Dimension(L*W*H): | 3100*1750*3400mm |
| Voltage: | 380V/50Hz |
| Power(W): | 75KW |
| Heating method: | Electric heating / steam heating |
| Control: | Siemens PLC brand |
| Structure: | Water tank, oil tank, emulsifying tank, platform and cabinet |
| Material: | SUS304 & SUS316L (3 layers) |
| Certification: | CE |
| Warranty: | One year since the date of installation.
|
All functions clearly show one the control box ,easier to operate ,
suitable for green hands
1440rpm disperser inside oil tank and water tank, with heating
function to melt raw material quickly
- Bidirectional mixing paddle with teflon scraper
45 degree inclined blade ,ensures material rolling and stirring
effect Seamless welding , easier to clean after production
Factory:
Our Service
After-sales Service: Online support,Video technical support,Free
spare parts
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in Vacuum emulsifying mixer,
filling machine, RO water treatment, capping machine and labeling
machine…etc for cosmetic, pharmaceutical, chemical equipment over
20 years.
Q2: How does your factory do regarding quality control?
A2: Quality is priority. We always attach great importance to
quality controlling from the beginning to the end. We support to
inspect machine before shipment.
Q3: What’s the guarantee and the after service if we purchase from
you?
A3: All the equipment ordered from us will provide one year
guarantee from the delivery date.we could send our engineer to
install or fix the machine locally.
Q4: Are your machines difficult to operate? How do you teach us to
use the machine?
A4: Our machines are easy to operate, before delivery we will shoot
instruction video to introduce machines' functions and to teach you
how to use them.
Q5: Can you make the machine according to customers' request?
A5: Yes of course, OEM is acceptable. Most of our machines are
customized design based on customer's requirements or situation.
